INSIGHT-121511 CMM

Insight-121511 DCC CMM Specification

Machine Frame

Granite X, Y, Z axes with Y-axis dovetail guideway machined into the granite table

Machine Travel

X=1200mm (48"), Y=1500mm (59"), Z=1100mm (43")

Scale Resolution

Renishaw linear scale with 0.5um resolution

Control System

Renishaw UCC controller/ Renishaw digital servo amps/ Renishaw joystick

Probe System

Renishaw PH10T Probe head + TP20 Touch Probe

Software

CMM-Manager Standard version with IGES & STEP CAD import

Operation Mode

Programmable DCC / Joystick

Accuracy

E=3.0um+L/300mm (Temperature 20℃±1℃, Humidity 55%-65%)

Workpiece Height

1100mm (43")

Workpiece Weight

2000Kg (4400lb)

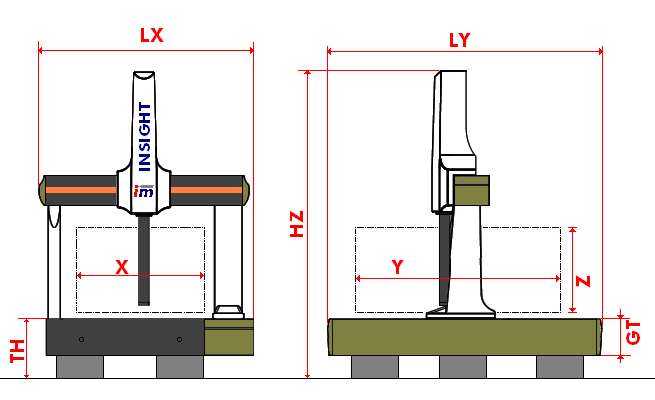

Overall Size

LX=2160mm (85"),  LY=2850mm (112"),  HZ=3800mm (150")

Other Dimensions

Table Height TH=700mm (28"),   Table Thickness GT=400mm (16")

Machine Weight

5800Kg (12760lb)

Options Available

1) Renishaw PH20 Probe Head     2) Camera with Vision Edge Detection
